Reactive Group Solid State Disks Ltd SCSIFLASH Arraid, LLC SCSI SDD


SCSI SSD replacement for SCSI Hard Disk Drive

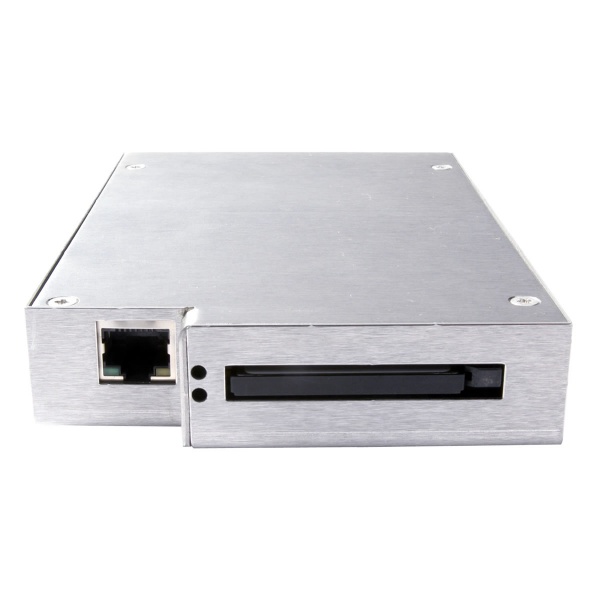

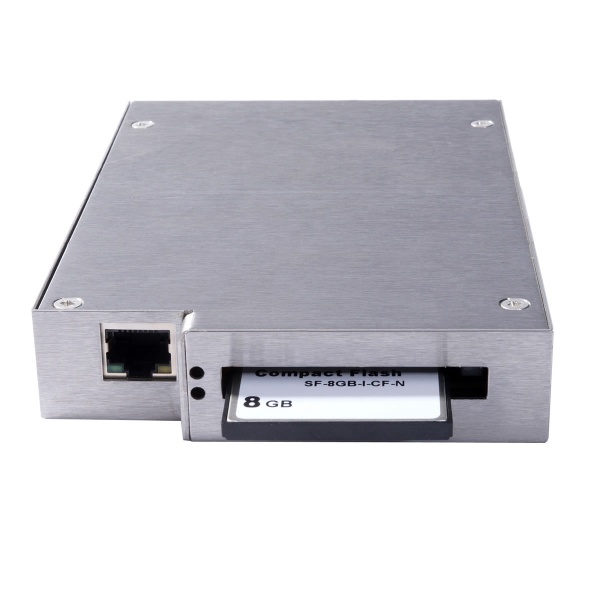

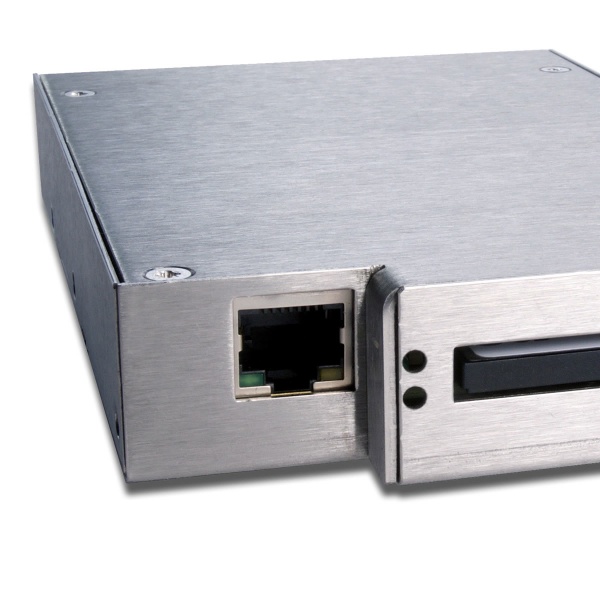

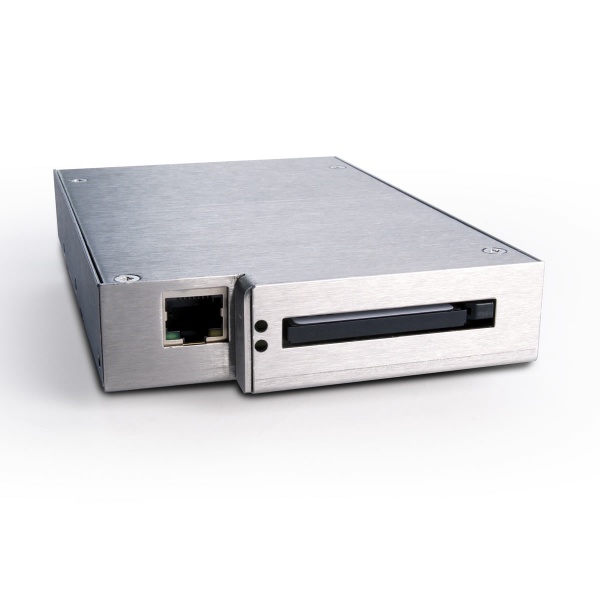

The Arraid SCSIFlash Disk Drive (ASFD-HD) is designed and manufactured by Arraid and replaces legacy SCSI storage disk drives. It replaces many SASI, SCSI-1, or SCSI-2 drives. The ASFD-HD is available in 50-pin, 68-pin and 80-pin (8 Bit) variants supporting 2.5 inch, 3.5 inch or larger 5.25 inch form factors. The ASFD-HD operates with CF cards of up to 512GB in capacity.


scsi iconbackup icon

The Arraid SCSIFlash Disk Drive (ASFD-HD) replaces legacy storage fixed disk drive and replaces SASI, SCSI-1, or SCSI-2 drives such as SCSI hard disk and (now ) obsolete SCSI SSD drives.

Offering Industrial Grade SCSI SSD replacements for a range of obsolete and End of Life (EOL) SCSI drives. No additional software or register changes are required to the legacy host. Custom capacities available for systems that require exact capacity value. Custom sector sizes available.

If you are looking for a drop in replacement for the drives below please contact us here. If you can't find your part number here, email us here and we will offer a custom solution.

Features and Benefits

  • 3.5” 50 pin SCSI Solid State Drive / 3.5” 50 pin SCSI SSD Drive / 68 pin SCSI Solid State Drive / 80 pin (8 Bit) SCSI Solid State Drive
  • Small format PCB converts Compact Flash Media to appear as a SCSI device on a Host’s SCSI bus
  • 3.5” form factor PCB which will replace any 3.5” disk drive or larger drives with adaptor
  • Will fit in a 3.5” disk slot using the same mountings
  • Allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus.
  • SCSI Host will typically see the device as a disk drive of any emulation
  • Board is low power, using 5V only, and has an optional add-on display and pushbutton user interface
  • Microcode is field upgradable via integral serial port
  • Optional integration support available if required
